MURATA POWER SOLUTIONS  DMS-20LCD-4/20S-C  Digital Panel Meter, LCD, 3-1/2 Digits, Current Loop Indicator, 4mA to 20mA

MURATA POWER SOLUTIONS DMS-20LCD-4/20S-C
Technical Data Sheet (221.57KB) EN Bekijk alle technische documenten

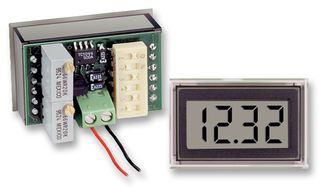

De afbeelding is alleen ter illustratie. Zie de productbeschrijving.

Productoverzicht

The DMS-20LCD-4/20S-C is a loop-powered LCD Meter with unipolar reading. It produces the lowest loop voltage-drop, 4 to 20mA input, 3-1/2-digit LCD-display process monitors typical 1.8V and maximum 2V. This super-low drop means its nominal loop resistance (burden) is less than 100R. The simple 2-wire hook-up allows the DMS-20LCD-4/20 series to be connected anywhere in the loop. All decimal-point and range-change selections are made via a 6-position DIP switch featuring vibration-resistant, gold-plated contacts - there are no jumpers or solder gaps to ever open or close. Its DIP switch and adjustment potentiometers can accommodate literally hundreds of different input-current/output-reading combinations. The connections to the current loop are made via a reliable, 2-position, screw-type terminal block. An optional bezel assembly, featuring screw fasteners and a rubber seal, simplifies panel mounting and provides excellent resistance to environmental dust and moisture.
  • Self-powered, no separate power source is required
  • Vibration-resistant package; reliable screw-terminal input connections
  • 0 to 60°C Temperature range

Productgegevens

No. of Digits / Alpha:
3-1/2
Meter Function:
Current Loop Indicator
Meter Range:
4mA to 20mA
Digit Height:
9.4mm
Panel Cutout Height:
21.29mm
Panel Cutout Width:
33.93mm
Supply Voltage Min:
-
Supply Voltage Max:
-
Operating Temperature Min:
0°C
Operating Temperature Max:
60°C
Product Range:
-
External Width:
33 mm
Operating Temperature Range:
0°C to +60°C
Supply Voltage Range:
-
Display Technology:
LCD
External Length / Height:
22.9 mm
SVHC:
No SVHC (17-Dec-2015)
External Depth:
20.3 mm

Zoeken naar vergelijkbare producten  per overeenkomende kenmerken

Toepassingen

  • Industrial;
  • Metering;
  • Test & Measurement

Wetgeving en milieu

Land van oorsprong:
China

Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd

RoHS-compliantie:
Ja
Tariefnummer:
85312095
Gewicht (kg):
.032
