LR03-L10M.
Float Switch, LR03 Series, Non Mercury, Polypropylene, 250 V, 15 A, IP68, 10 m Cable

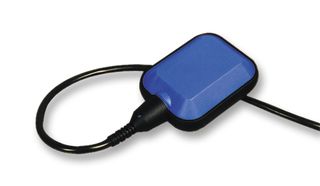

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTRITON CONTROLS
Manufacturer Part NoLR03-L10M.
Order Code7064275
Product RangeLR03 Series
Technical Datasheet
227 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
Available until stock is exhausted
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €33.280 |
| 10+ | €26.450 |
| 25+ | €22.930 |
| 50+ | €21.020 |
| 100+ | €19.110 |
Price for:Each
Minimum: 1
Multiple: 1
€33.28 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTRITON CONTROLS
Manufacturer Part NoLR03-L10M.
Order Code7064275
Product RangeLR03 Series
Technical Datasheet
Sensor Body MaterialPP (Polypropylene)
Output Current15A
Operating Pressure Max2bar
Operating Temperature Max70°C
Product RangeLR03 Series
Product Overview
The LR03-L10M is a non-mercury level regulator Float Switch moulded in 10m PVC cable or synthetic rubber 3 core cable. The float chamber houses the micro-switch arrangement, totally sealed within a polypropylene casing, with a single pole double throw action. These float switches are efficient liquid level detectors. Actuation is via a roller ball and micro-switch arrangement within the switch thereby eliminating all heavy metals from this version. They are simple to install and designed for trouble free operation over a long life.
- Operational in specific gravities from 0.9 to 1.3
- 70°C Maximum temperature
- 10m cable
Applications
Sensing & Instrumentation
Notes
Local regulations may limit the voltage.
Technical Specifications
Sensor Body Material
PP (Polypropylene)
Operating Pressure Max
2bar
Product Range
LR03 Series
Output Current
15A
Operating Temperature Max
70°C
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:90261089
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):1.16
