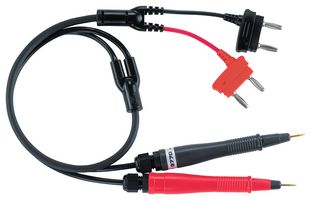

HIOKI 9770

Pin Tip Test Lead, 33.85 ", 860 mm, Black, Red, 3 A, 60 VDC

HIOKI 9770
HIOKI 9770
HIOKI 9770
HIOKI 9770
HIOKI 9770
HIOKI 9770
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
HIOKI HIOKI
Manufacturer Part No:
9770
Order Code:
4240616
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
9770   Datasheet
See all Technical Docs

Product Range Selector (TUK SGACK902S Keystone Coupler)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
33.85"

:
860mm

:
Black, Red

:
3A

:
60VDC

:
TUK SGACK902S Keystone Coupler

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

Product Overview

9770 is a pin type lead. The conductive-tip contact pin of the model 9770 has a four-terminal structure that is developed for inspection of small devices, such as a terminal of a button cell battery. Use of the coaxial pin with an outside diameter of 1.8 mm makes it easy to contact an object to be measured, ensuring correct resistance measurement.
  • Maximum rated terminal to-ground voltage 60V DC, 30V AC rms, 42.4V AC peak
  • Maximum input current model 9770: AC/DC 3A continuous
  • Operating temperature range 0 to 40°C(32 to 104°F)

Contents

Pin type lead, Instruction manual.

Available to manufacturer lead time 6 weeks

Order now. Pay nothing until products are dispatched

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

€328.00
