MD-ISK-S30-500-P5-B

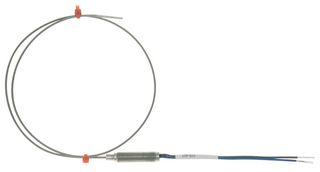

MD-ISK-S30-500-P5-B is a mineral insulated thermocouple (BS colours). Flexible mineral insulated probe with 310 stainless steel with M8 x 1.0mm fine pitch threaded pot seal & tails. 310 stainless steel provides good corrosion and oxidation resistance to suit a wide range of processes, satisfactorily operates in sulphur bearing atmospheres. Typical applications include brick & cement kilns, glass industry, heat treatment & annealing furnaces, power stations, flues, heat exchangers etc. Termination is 7/0.2mm PVC insulated tails x 100mm long, colour coded in accordance with former British standard BS1843-1952 (pos+brown/neg-blue).

• Mineral insulated type K thermocouple with threaded pot and tails, 310 stainless steel sheath
• Highly flexible, sheath can be bent/formed to suit many applications and process
• Insulated hot junction
• M8 x 1.0mm fine pitch threaded pot seal
• Conforms to IEC 584-1&2
• Sensor type is type K (nickel chromium/nickel aluminium) to IEC 584-1&2
• Single element, junction insulated from sheath (offers protection against electrical noise)
• Probe temperature range from -40°C to +1100°C, pot seal rating is 105°C maximum
• 3mm probe diameter, 500mm probe length
