M5235BCCKITE
Evaluation Module, MCF523X ColdFire MCU, Business Card Controller Format, Axiom CMM-5235 Module

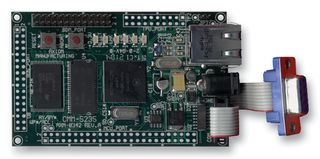

Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerNXP
Manufacturer Part NoM5235BCCKITE
Order Code1579758
Technical Datasheet
Silicon ManufacturerNXP
No. of Bits32bit
Silicon Family NameMCF523x
Core ArchitectureColdFire
Core Sub-ArchitectureColdFire v2
Silicon Core NumberMCF52
Kit ContentsBoard
Product Range-
Product Overview
The M5235BCCKITE offers a complete low cost method for evaluation of NXP MCF5235 ColdFire microprocessor. About the size of a business card (3.5inches x 2.2inches), the M5235BCC module comes with 2Mbytes of flash, 16Mbytes of SDRAM, a 10/100 base T Ethernet port, and an award winning ColdFire debug module. Open source GNU tools and an open source TCP/IP stack is also available along with an available RTOS. NXP offers both the M5235BCCKIT and the stand alone M5235BCC.
- Four status indicators, auto MDI-X crossover
- Regulated 3.3V and 1.5V power supply with indicator
- 120mA at 12V DC input typical current consumption
Applications
Industrial, Automation & Process Control, Motor Drive & Control
Contents
M5235BCC module, P&E wiggler cable, CE certified power supply, and associated components needed to run right out of the box.
Technical Specifications
Silicon Manufacturer
NXP
Silicon Family Name
MCF523x
Core Sub-Architecture
ColdFire v2
Kit Contents
Board
No. of Bits
32bit
Core Architecture
ColdFire
Silicon Core Number
MCF52
Product Range
-
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85423990
US ECCN:5A002.a.1
EU ECCN:5A002.a.1
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.05
