S12ZVML-MINIKIT
Evaluation Kit, MC9S12ZVML128, S12 MagniV, 3 Phase BLDC & PMSM Motor Controller, Power Management

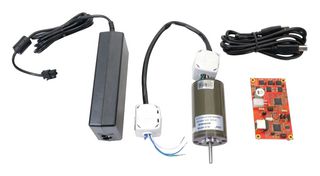

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 4 week(s)
Notify me when back in stock
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €231.390 |
Price for:Each
Minimum: 1
Multiple: 1
€231.39 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNXP
Manufacturer Part NoS12ZVML-MINIKIT
Order Code2985274
Silicon ManufacturerNXP
Silicon Core NumberMC9S12ZVML128
Kit Application TypePower Management - Motor Control
Application Sub Type3 Phase BLDC & PMSM Motor Controller
Core ArchitectureS12Z
Core Sub-ArchitectureS12ZVM
Silicon Family NameS12 MagniV
Kit ContentsEvaluation Board S12ZVML, 3-Phase Linix 45ZWN24-40 PM Motor, Power Supply and Cable, USB cable
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
S12ZVML-MINIKIT is a S12ZVML-MINIBRD with a Linix PM motor. The MINIBRD board designed to demonstrate the minimal hardware configuration needed for a 3-phase BLDC and PMSM sensorless motor control application to achieve minimum board size.
- MC9S12ZVML128 MCU
- Power supply voltage in the range of -25V to +25V, nominal +12V
- Reverse battery protection
- Load current in range of -10A to +10A
- Load current monitoring
- Boost circuitry designed to allow driving Vgs = 10V MOSFETs from a +3.5V power supply
- On-board charge pumps to allow driving the high side MOSFETs
- Analogue and digital inputs for target application control and monitoring
- Board size of 5cm x 9cm
Contents
S12ZVML-based evaluation board, 3-phase Linix 45ZWN24-40 PM motor, Power Supply and cable, USB cable, Get started card with support package information.
