PWM200VHF-BP

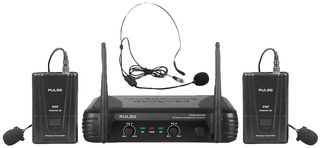

A VHF dual wireless lavalier and headset microphone system with simple set-up and easy operation. Suitable for use in karaoke, entertainment, classroom, conference and other presentation applications.

• Operates on a licence free VHF frequency for use within the UK
• 2x Wireless beltpack transmitters with lavalier (lapel and headset microphones
• Flexi-cote rubber coating on microphone for improved grip/handling
• ON/STANDBY/OFF selection switch on handheld transmitters
• High feedback rejection circuits
• RECEIVER:
• Carrier frequency: 173.8MHz & 175.0MHz
• System frequency range: 40Hz-20kHz (dependant of mic)
• S/N Ratio: <gt/>70dB
• Distortion: <lt/>1%
• Output connectors: Balanced XLR and unbalanced 6.35mm (¼”) jack
• Fixed line level output on XLR connection, adjustable level on Jack connection
• Power supply: 12-15V DC, 500mA (adaptor included)
• Dimensions (WxHxD): 175x135x43mm (excl. antenna)
• Weight: 220g
• BELTPACK TRANSMITTER:
• Connector: 3.5mm Locking jack
• Power supply: 2x 1.5V AA (test batteries included)
• Battery life: Up to 8hrs (alkaline)

Contents

Contents: VHF Receiver, 2x Beltpack transmitters, 2x Lavalier microphones, 2x Headset microphones, 4x AA batteries, Power adaptor, User manual.

Notes

MB: Can be used in conjunction with PWM100VHF systems to make a 3 channel VHF set-up.
