Peltier Elements - Thermoelectric Modules

Vind een enorm aanbod van Peltier Elements - Thermoelectric Modules in Farnell België. We hebben een grote selectie van Peltier Elements - Thermoelectric Modules op voorraad, waaronder nieuwe en populairste producten van 's werelds beste fabrikanten, waaronder: Multicomp Pro, European Thermodynamics, Wakefield Thermal, Cui / Partner Stock & Molex / Partner Stock.

Fabrikant

Transducer Function

No. of Stages

Cooling Power Pc

Power Rating

Current Max @ Diff Temperature Max

Voltage Max @ Diff Temperature Max

Length

Width

Depth

Temperature Difference Max

Product Range

Internal Resistance

Lead Wires

Verpakking

Geen filter(s) toegepast

0 Filter(s) geselecteerd

			Prijs voor		Hoeveelheid

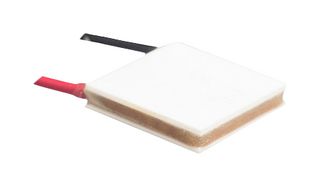

MCHPE-127-10-08-E	1639737 Data Sheet RoHS	MULTICOMP PRO Thermoelectric Peltier Cooler Module Single Stage 55 W 6 A 15.7 VDC 30mm x 30mm x 3.1mm	Each	1+ 36,900 € 3+ 34,320 € 10+ 32,090 € 25+ 30,750 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	55W	55W	6A	15.7VDC	30mm	30mm	3.1mm	69°C	MCHPE	2.3ohm	100mm, UL-Style 1569, Unstripped

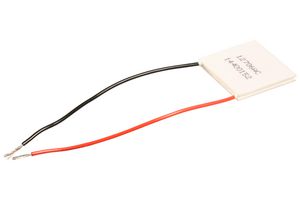

MCPE1-12706AC-S	1639724 Data Sheet RoHS	MULTICOMP PRO Peltier Cooler 53.1W	Each	1+ 30,400 € 3+ 25,990 € 10+ 23,600 € 25+ 21,350 € 100+ 20,380 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	53.1W	53.1W	6A	15.7VDC	30mm	30mm	3.15mm	70°C	MCPE	1.9ohm	UL-Style 1569, Unstripped
MCTE1-12712L-S	1639727 Data Sheet RoHS	MULTICOMP PRO Peltier Element Thermoelectric Cooler 110 W 1 ohm 12 A 15.4 V 68 °C	Each	1+ 38,870 € 3+ 33,240 € 10+ 30,170 € 25+ 27,300 € 100+ 26,060 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	110W	110W	12A	15.4VDC	40mm	40mm	3.7mm	68°C	MCTE	1ohm	100mm, UL-Style 1569, Unstripped
MCPK2-19808AC-S	1639734 Data Sheet RoHS	MULTICOMP PRO Peltier Cooler 51.6W	Each	1+ 49,870 € 3+ 46,390 € 10+ 43,370 € 25+ 41,560 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	2 Stage	51.6W	51.6W	8.5A	16.1VDC	40mm	40mm	7.05mm	85°C	MCPK	1.65ohm	UL-Style 1569, Unstripped
MCPE1-12708AC-S	1639718 Data Sheet RoHS	MULTICOMP PRO Thermoelectric Peltier Cooler Module Single Stage 77.1 W 8.5 A 40 mm x 40 mm x 3.45 mm	Each	1+ 31,820 € 3+ 27,210 € 10+ 24,710 € 25+ 22,350 € 100+ 21,340 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	77.1W	77.1W	8.5A	15.7VDC	40mm	40mm	3.45mm	70°C	MCPE	-	UL-Style 1569, Unstripped

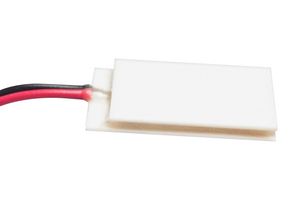

MCHPE-288-14-06-E	1639743 Data Sheet RoHS	MULTICOMP PRO Peltier Cooler 340W	Each	1+ 111,310 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	340W	340W	15.4A	35.8VDC	50mm	50mm	3.9mm	68°C	MCHPE	1.9ohm	100mm, UL-Style 1569, Unstripped
MCPE1-07108AC-S	1639719 Data Sheet RoHS	MULTICOMP PRO Peltier Cooler 43.1W	Each	1+ 27,140 € 3+ 23,210 € 10+ 21,070 € 25+ 19,060 € 100+ 18,200 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	43.1W	43.1W	8.5A	8.8VDC	30mm	30mm	3.45mm	70°C	MCPE	0.85ohm	UL-Style 1569, Unstripped
MCPF-127-14-11-E	1639761 Data Sheet RoHS	MULTICOMP PRO Peltier Cooler 79W	Each	1+ 55,060 € 3+ 51,690 € 10+ 46,050 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	79W	79W	8.5A	15.7VDC	40mm	40mm	3.8mm	70°C	MCPF	1.59ohm	UL-Style 1569, Unstripped
MCPE1-12707AC-S	1639722 Data Sheet RoHS	MULTICOMP PRO Thermoelectric Peltier Cooler Module Single Stage 55.6 W 6 A 40 mm x 40 mm x 3.95 mm	Each	1+ 31,760 € 3+ 27,160 € 10+ 24,660 € 25+ 22,310 € 100+ 21,300 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	55.6W	55.6W	6A	15.7VDC	40mm	40mm	3.95mm	70°C	MCPE	2.2ohm	UL-Style 1569, Unstripped
MCPE1-07106NC-S	1639725 Data Sheet RoHS	MULTICOMP PRO Thermoelectric Peltier Cooler Module Single Stage 29.7 W 6 A 20 mm x 20 mm x 3.1 mm	Each	1+ 27,600 € 3+ 23,600 € 10+ 21,430 € 25+ 19,390 € 100+ 18,510 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	29.7W	29.7W	6A	8.8VDC	20mm	20mm	3.1mm	70°C	MCPE	1.05ohm	UL-Style 1569, Unstripped
MCTE1-19908L-S	1639731 Data Sheet RoHS	MULTICOMP PRO Peltier Cooler 118W	Each	1+ 30,240 € 3+ 28,130 € 10+ 26,290 € 25+ 25,200 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	118W	118W	8.5A	24.1VDC	40mm	40mm	3.5mm	68°C	MCTE	2.35ohm	UL-Style 1569, Unstripped
MCTE1-12715L-S	1639728 Data Sheet RoHS	MULTICOMP PRO Peltier Cooler 130W	Each	1+ 35,990 € 3+ 30,770 € 10+ 27,940 € 25+ 25,280 € 100+ 24,130 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	130W	130W	15A	15.4VDC	50mm	50mm	3.5mm	68°C	MCTE	0.8ohm	150mm, UL-Style 1569, Unstripped
MCPE-127-10-13	1639751 Data Sheet RoHS	MULTICOMP PRO Peltier Cooler 38.1W	Each	1+ 29,270 € 3+ 27,230 € 10+ 25,460 € 25+ 24,400 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	38.1W	38.1W	3.9A	15.7VDC	30mm	30mm	3.6mm	75°C	MCPE	3.6ohm	100mm, UL-Style 1569, Unstripped
MCTE1-19913L-S	1639732 Data Sheet RoHS	MULTICOMP PRO Thermoelectric Peltier Cooler Module Single Stage 237 W 14 A 50 mm x 50 mm x 3.5 mm	Each	1+ 31,760 € 3+ 29,540 € 10+ 27,610 € 25+ 26,460 €	Min: 1 / Meerdere: 1	-	1 Stage	237W	-	14A	24.1VDC	50mm	50mm	3.5mm	68°C	MCTE	1.4ohm	150mm, UL-Style 1569, Unstripped
APH-199-14-08-E	2466908 Data Sheet RoHS	EUROPEAN THERMODYNAMICS Thermoelectric Peltier Cooler Module Single Stage 165 W 12 A 24.1 VDC 40mm x 40mm x 3.5mm	Each	1+ 64,450 € 5+ 54,280 € 10+ 46,880 € 20+ 45,940 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	165W	165W	12A	24.1VDC	40mm	40mm	3.5mm	67°C	APH	-	100mm, UL-Style 1569, Unstripped
AP2-162-1420-1118	2519563 Data Sheet RoHS	EUROPEAN THERMODYNAMICS Thermoelectric Peltier Cooler Module Double Stage 29.3 W 7.8 A 16 VDC 40mm x 40mm x 7.6mm	Each	1+ 110,520 € 5+ 87,920 € 10+ 86,160 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	2 Stage	29.3W	29.3W	7.8A	16VDC	40mm	40mm	7.6mm	95°C	AP2	-	100mm, UL-Style 1569, Unstripped
MP-AR-AR-021-B1	3267531 Data Sheet RoHS	MULTICOMP PRO Thermoelectric Peltier Cooler Module Assembly Air To Air 21 W 5 A 12V 208.2mm x 162mm x 102.2mm	Each	1+ 64,810 € 3+ 60,840 € 10+ 54,200 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	-	21W	21W	5A	12VDC	208mm	162mm	102mm	-	AR-AR	-	-
MPADV-127-140160-S	3267545 Data Sheet RoHS	MULTICOMP PRO Thermoelectric Peltier Cooler Module Single Stage 51 W 6 A 15.4 VDC 40mm x 40mm x 3.8mm	Each	1+ 23,450 € 3+ 18,100 € 10+ 14,960 € 25+ 13,580 € 100+ 12,290 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	51W	51W	6A	15.4VDC	40mm	40mm	3.8mm	65°C	MPADV	-	200mm, 20 AWG, PTFE Insulated
MPET-127-08-15	3255332 Data Sheet RoHS	MULTICOMP PRO Thermoelectric Peltier Cooler Module Single Stage 20.9 W 2.2 A 15.7 VDC 25mm x 25mm x 3.8mm	Each	1+ 41,540 € 3+ 38,640 € 10+ 36,120 € 25+ 34,610 €	Min: 1 / Meerdere: 1	-	1 Stage	20.9W	-	2.2A	15.7VDC	25mm	25mm	3.8mm	74°C	MPET	-	100mm, UL-Style 1569, Unstripped
MCPE-241-10-13	1639753 Data Sheet RoHS	MULTICOMP PRO Peltier Cooler 71.8W	Each	1+ 58,440 € 3+ 54,360 € 10+ 50,820 € 25+ 48,700 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	71.8W	71.8W	3.9A	29.8VDC	40mm	40mm	3.6mm	74°C	MCPE	6.8ohm	100mm, UL-Style 1569, Unstripped
MCHPE-071-10-08-E	1639736 Data Sheet RoHS	MULTICOMP PRO Thermoelectric Peltier Cooler Module Single Stage 30 W 6 A 8.8 VDC 20mm x 20mm x 3.1mm	Each	1+ 34,560 € 3+ 32,150 € 10+ 30,050 € 25+ 28,800 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	30W	30W	6A	8.8VDC	20mm	20mm	3.1mm	69°C	MCHPE	1.21ohm	100mm, UL-Style 1569, Unstripped
MCPF-127-14-16-E	1639762 Data Sheet RoHS	MULTICOMP PRO Peltier Cooler 57.9W	Each	1+ 50,080 € 3+ 46,580 € 10+ 43,540 € 25+ 41,730 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	57.9W	57.9W	6A	15.7VDC	40mm	40mm	3.9mm	72°C	MCPF	2.2ohm	UL-Style 1569, Unstripped
MCPE-031-10-15	1639747 Data Sheet RoHS	MULTICOMP PRO Peltier Cooler 7.5W	Each	1+ 34,930 € 3+ 29,870 € 10+ 27,120 € 25+ 24,540 € 100+ 23,420 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	7.5W	7.5W	3.2A	3.8VDC	15mm	15mm	3.8mm	74°C	MCPE	1.03ohm	UL-Style 1569, Unstripped
MCPE1-07107AC-S	1639723 Data Sheet RoHS	MULTICOMP PRO Peltier Cooler 31.1W	Each	1+ 27,140 € 3+ 23,210 € 10+ 21,070 € 25+ 19,060 € 100+ 18,200 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	31.1W	31.1W	6A	8.8VDC	30mm	30mm	3.95mm	70°C	MCPE	1.25ohm	UL-Style 1569, Unstripped
MCPF-031-10-25	1639756 Data Sheet RoHS	MULTICOMP PRO Peltier Cooler 4.5W	Each	1+ 29,610 € 3+ 27,540 € 10+ 25,750 € 25+ 24,670 €	Min: 1 / Meerdere: 1	Thermoelectric Cooler	1 Stage	4.5W	4.5W	2A	3.8VDC	15mm	15mm	4.8mm	74°C	MCPF	1.76ohm	UL-Style 1569, Unstripped
