DM330022-1

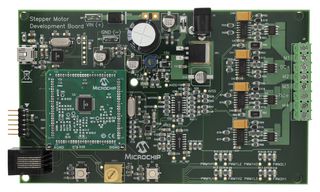

dsPICDEM™ MCSM Development Board is targeted to control both unipolar and bipolar stepper motors in open-loop or closed-loop (current control) mode. The hardware is designed in such a way that no hardware changes are necessary for 8-, 6- or 4-wire stepper motors in either bipolar or unipolar configurations. Software to run motors in open-loop or closed-loop with full or variable micro-stepping is provided. A GUI for controlling step commands, motor parameter input, and operation modes is included. This flexible and cost-effective board can be configured in different ways for use with Microchip’s specialized dsPIC33 Motor Control Digital Signal Controllers (DSCs).

• dsPICDEM MCSM Development Board supports terminal voltages up to 80V and currents up to 3A
• dsPIC33C device uses MOSFET driver to drive two full-bridge inverters that power the motor windings

Inhoud

dsPICDEM MCSM development board, dsPIC33CK64MP105 PIM, USB-to-mini-USB cable, Screwdriver.
