183 Op Voorraad
1.680 U kunt nu voorraad reserveren
Levering binnen 1-2 werkdagen
Bestel vóór 17:00 uur - standaardverzending
Hoeveelheid | |
---|---|
1+ | 3,770 € |
10+ | 2,820 € |
100+ | 2,730 € |
250+ | 2,230 € |
500+ | 2,120 € |
1000+ | 2,000 € |
Prijs voor:Each
Minimum: 1
Meerdere: 1
3,77 € (excl. BTW)
Onderdeelnr. toevoegen / Regelopmerking
Wordt alleen voor deze bestelling toegevoegd aan uw Orderbevestiging, Factuur en Verzendnota.
Dit nummer wordt toegevoegd aan de Bestelbevestiging, Factuur, Verzendnota, E-mail met Webbevestiging en Productetiket.
Productgegevens
Fabrikant3M
Artikelnr. fabrikantN2534-6002RB
Ordercode9838295
Productreeks2500
Ook bekend als7100243273
Technische datasheet
Connector SystemsWire-to-Board
Pitch Spacing2.54mm
No. of Rows2Rows
No. of Contacts34Contacts
Contact Termination TypeThrough Hole Straight
Product Range2500
Connector ShroudShrouded
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector TypePCB Header
SVHCNo SVHC (17-Dec-2015)
Productoverzicht

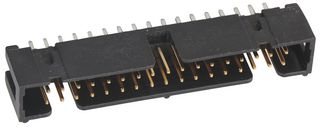

The N2534-6002RB is a 34-way 0.100 x 0.100-inch 4-wall Straight Header for 0.062-inch thick board tail, with gold-plated copper alloy contacts and through hole termination. This 2500 series low profile header is a glass filled polyester (PCT) insulated, center slot polarization prevents mis-insertions and reduces insertion time, suitable for reflow soldering using paste in hole techniques.
- Black colour high temperature glass filled polyester PCT insulator
- Copper alloy with gold plating contacts
- Temperature rating from -55°C to 105°C
- Withstanding Voltage: 1000V
- Current Rating:
- 5A, 1 Contact Powered, 3A, 6 Contacts Powered, 1.75A, All Contacts Powered
Toepassingen
Industrial
Technische specificaties
Connector Systems
Wire-to-Board
No. of Rows
2Rows
Contact Termination Type
Through Hole Straight
Connector Shroud
Shrouded
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (17-Dec-2015)
Pitch Spacing
2.54mm
No. of Contacts
34Contacts
Product Range
2500
Contact Material
Copper Alloy
Connector Type
PCB Header
Technische documenten (3)
Alternatieven voor N2534-6002RB
5 gevonden producten
Aanverwante producten
4 gevonden producten
Wetgeving en milieu
Land van oorsprong:
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:United States
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:United States
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Tariefnummer:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS-compliantie:Ja
RoHS
Voldoet aan RoHS-richtlijn voor ftalaten:Ja
RoHS
SVHC:No SVHC (17-Dec-2015)
Download conformiteitsverklaring
Conformiteitsverklaring
Gewicht (kg):.003402
