Pagina afdrukken

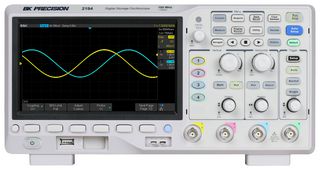

De afbeelding is alleen ter illustratie. Zie de productbeschrijving.
6 Op Voorraad
Heeft u meer nodig?
Levering binnen 1-2 werkdagen
Bestel vóór 17:00 uur - standaardverzending
Hoeveelheid | |
---|---|
1+ | 675,000 € |
Prijs voor:Each
Minimum: 1
Meerdere: 1
675,00 € (excl. BTW)
Onderdeelnr. toevoegen / Regelopmerking
Wordt alleen voor deze bestelling toegevoegd aan uw Orderbevestiging, Factuur en Verzendnota.
Dit nummer wordt toegevoegd aan de Bestelbevestiging, Factuur, Verzendnota, E-mail met Webbevestiging en Productetiket.
Productgegevens
FabrikantB&K PRECISION
Artikelnr. fabrikantBK2194
Ordercode3884174
Technische datasheet
Product Range-
Scope Channels4 Channel
Bandwidth100MHz
Sampling Rate1GSPS
Display Memory Depth14 Mpts
Calculated Rise Time3.5ns
Scope Display TypeTFT LCD Colour
Kit ContentsDigital Storage Oscilloscope, Power Cord, USB Cable, Passive Probe, Certificate Of Calibration
Manufacturer Warranty3 Years
Plug Type-
SVHCNo SVHC (07-Nov-2024)
Productoverzicht
BK2194 digital storage oscilloscope provides 100MHz of bandwidth in a 4-channel configuration with a maximum sample rate of 1GSa/s and a maximum memory depth of 14Mpts. The BK2194 comes equipped with a 7" widescreen display and extensive features including segmented acquisition, FTT and serial decoding for five different communication protocols. This model is the ideal solution for educational settings and hobbyists.
- Waveform capture rates up to 100,000 (normal mode) and 400,000 (sequence mode) waveforms per second
- Versatile triggering capabilities including pulse width, line-selectable video and serial
- Segmented acquisition stores up to 80,000 frames
- Serial decoding for I2C, SPI, UART, CAN and LIN protocols
- FFT feature and 7 additional math operations
- Masking tool with adjustable limits for pass/fail testing
- LAN and USBTMC compliant device ports for PC connectivity
- USB host port for saving and recalling waveform setups, data, and screenshots
- USBTMC-compliant device port and LAN interfaces standard
- Multi-language support
Inhoud
Digital storage oscilloscope, Power cord, USB cable, Four passive probes, Certificate of calibration.
Technische specificaties
Product Range
-
Bandwidth
100MHz
Display Memory Depth
14 Mpts
Scope Display Type
TFT LCD Colour
Manufacturer Warranty
3 Years
SVHC
No SVHC (07-Nov-2024)
Scope Channels
4 Channel
Sampling Rate
1GSPS
Calculated Rise Time
3.5ns
Kit Contents
Digital Storage Oscilloscope, Power Cord, USB Cable, Passive Probe, Certificate Of Calibration
Plug Type
-
Technische documenten (2)
Alternatieven voor BK2194
2 gevonden producten
Aanverwante producten
8 gevonden producten
Wetgeving en milieu
Land van oorsprong:
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:China
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:China
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Tariefnummer:90302000
US ECCN:3A992.a
EU ECCN:NLR
RoHS-compliantie:Y-Ex
RoHS
Voldoet aan RoHS-richtlijn voor ftalaten:Ja
RoHS
SVHC:No SVHC (07-Nov-2024)
Download conformiteitsverklaring
Conformiteitsverklaring
Gewicht (kg):3.7
