Productgegevens
FabrikantBISONIC
Artikelnr. fabrikant5E-DVB-1-W
Ordercode9715410
ProductreeksAC 5E
Technische datasheet
Nominal Rated Voltage AC100V / 200V
Fan Frame TypeCircular
Fan Frame Size150mm
External Depth55mm
Bearing TypeBall Bearing
Air Flow - CFM171CFM
Noise Rating59dBA
Power Rating-
Rated Speed3000rpm
Power Connection Type2 Lead Wires
Current Rating620mA
IP Rating-
Air Flow - m3/min4.8m³/min
Product RangeAC 5E
Productoverzicht

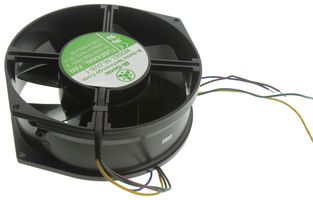

The 5E-DVB-1-W is a 230VAC high flow Cooling Fan with ball bearing and wire leaded power connection. This AC 5E-series cooling fan has die-cast aluminium housing, a metal or glass fibre reinforced plastic impeller and shaded pole motor.
- UL94V-0 Flammability rating
- 2750/3100RPM Speed rating
- 47W Rated power
- 0.48/0.54"-H₂O Static pressure
- -30 to 75°C Operating temperature range
- Impedance protected
Technische specificaties
Nominal Rated Voltage AC
100V / 200V
Fan Frame Size
150mm
Bearing Type
Ball Bearing
Noise Rating
59dBA
Rated Speed
3000rpm
Current Rating
620mA
Air Flow - m3/min
4.8m³/min
Fan Frame Type
Circular
External Depth
55mm
Air Flow - CFM
171CFM
Power Rating
-
Power Connection Type
2 Lead Wires
IP Rating
-
Product Range
AC 5E
Technische documenten (2)
Aanverwante producten
2 gevonden producten
Wetgeving en milieu
Land van oorsprong:
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:China
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:China
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Tariefnummer:84145925
US ECCN:EAR99
EU ECCN:NLR
RoHS-compliantie:Ja
RoHS
Voldoet aan RoHS-richtlijn voor ftalaten:Ja
RoHS
Download conformiteitsverklaring
Conformiteitsverklaring
Gewicht (kg):1
