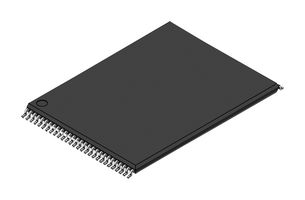

De afbeelding is alleen ter illustratie. Zie de productbeschrijving.
FabrikantINFINEON
Artikelnr. fabrikantS29GL01GT10TFI010
Ordercode2768056
Productreeks3V Parallel NOR Flash Memories
Ook bekend alsSP005664115, S29GL01GT10TFI010
Technische datasheet
1.595 Op Voorraad
Heeft u meer nodig?
Levering binnen 1-2 werkdagen
Bestel vóór 17:00 uur - standaardverzending
Hoeveelheid | |
---|---|
1+ | 11,960 € |
10+ | 11,270 € |
25+ | 11,070 € |
50+ | 10,400 € |
100+ | 10,360 € |
Prijs voor:Each
Minimum: 1
Meerdere: 1
11,96 € (excl. BTW)
Onderdeelnr. toevoegen / Regelopmerking
Wordt alleen voor deze bestelling toegevoegd aan uw Orderbevestiging, Factuur en Verzendnota.
Dit nummer wordt toegevoegd aan de Bestelbevestiging, Factuur, Verzendnota, E-mail met Webbevestiging en Productetiket.
Productgegevens
FabrikantINFINEON
Artikelnr. fabrikantS29GL01GT10TFI010
Ordercode2768056
Productreeks3V Parallel NOR Flash Memories
Ook bekend alsSP005664115, S29GL01GT10TFI010
Technische datasheet
Flash Memory TypeParallel NOR
Memory Density1Gbit
Memory Configuration128M x 8bit
InterfacesCFI, Parallel
IC Case / PackageTSOP
No. of Pins56Pins
Clock Frequency Max-
Access Time100ns
Supply Voltage Min2.7V
Supply Voltage Max3.6V
Supply Voltage Nom-
IC MountingSurface Mount
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product Range3V Parallel NOR Flash Memories
MSLMSL 3 - 168 hours
SVHCNo SVHC (21-Jan-2025)
Productoverzicht
S29GL01GT10TFI010 is a 1Gb (128MB), parallel 3.0V, GL-T MIRRORBIT™ flash memory. This device offers a fast page access time as fast as 15ns, with a corresponding random access time as fast as 100ns. It features a write buffer that allows a maximum of 256 words/512 bytes to be programmed in one operation, resulting in faster effective programming time than standard programming algorithms. It makes this device ideal for today’s embedded applications that require higher density, better performance, and lower power consumption.
- 100ns random access time speed, fabricated on 45nm process technology
- VIO=VCC=2.7V to 3.6V, highest address sector protected CFI Version 1.5
- Single supply (VCC) for read / program / erase (2.7V to 3.6V)
- Versatile I/O feature - wide I/O voltage range (VIO) 1.65V to VCC
- ×8/×16 data bus, asynchronous 32-byte page read
- Automatic error checking and correction (ECC) internal hardware ECC with single bit error correction
- Suspend and resume commands for program and erase operations
- Status register, data polling, and ready/busy pin methods to determine device status
- 100,000 program/erase cycles, 20-year data retention
- TSOP package, industrial temperature range from -40°C to +85°C
Technische specificaties
Flash Memory Type
Parallel NOR
Memory Configuration
128M x 8bit
IC Case / Package
TSOP
Clock Frequency Max
-
Supply Voltage Min
2.7V
Supply Voltage Nom
-
Operating Temperature Min
-40°C
Product Range
3V Parallel NOR Flash Memories
SVHC
No SVHC (21-Jan-2025)
Memory Density
1Gbit
Interfaces
CFI, Parallel
No. of Pins
56Pins
Access Time
100ns
Supply Voltage Max
3.6V
IC Mounting
Surface Mount
Operating Temperature Max
85°C
MSL
MSL 3 - 168 hours
Technische documenten (1)
Wetgeving en milieu
Land van oorsprong:
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Thailand
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Thailand
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Tariefnummer:85423269
US ECCN:EAR99
EU ECCN:NLR
RoHS-compliantie:Ja
RoHS
Voldoet aan RoHS-richtlijn voor ftalaten:Ja
RoHS
SVHC:No SVHC (21-Jan-2025)
Download conformiteitsverklaring
Conformiteitsverklaring
Gewicht (kg):.003714
