410-237

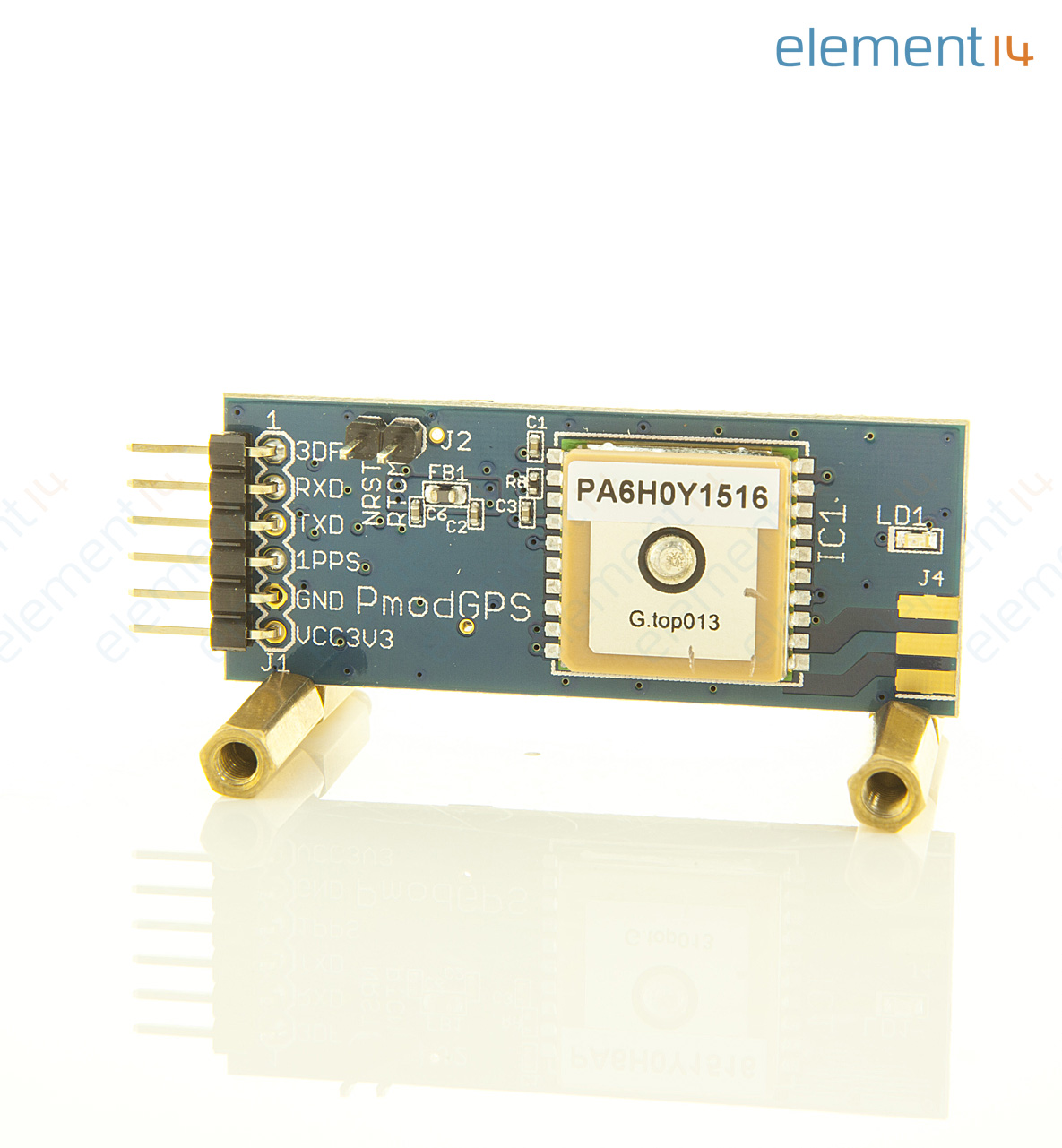

Daughter Board, PmodGPS GPS Receiver Module, Integrated Ceramic GPS Antenna, 10Hz Rate

DIGILENT 410-237
360°
×
×

De afbeelding is alleen ter illustratie. Zie de productbeschrijving.

Artikelnr. fabrikant:
410-237
Ordercode:
2211777
Technische datasheet:
410-237   Data papier
Bekijk alle technische documenten

Productgegevens

Wilt u soortgelijke producten bekijken? Selecteer hieronder uw gewenste attributen en druk op de knop ×


:
MediaTek

:
-

:
-

:
MT3329

:
-

:
Digilent System Boards

:
PmodGPS GPS Receiver Module

:
-

Zoeken naar vergelijkbare producten Kies en wijzig de bovenstaande eigenschappen om soortgelijke producten te zoeken.

Technische documenten (1)

CAD downloads

×

Voorwaarden en bepalingen

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accepteren Annuleren

Productoverzicht

The PMOD GPS is a GPS receiver module which can add satellite positioning accuracy to any embedded system. The PmodGPS features a GlobalTop Gms-u1LP GPS antenna module that utilizes the MediaTek GPS MT3329. The PmodGPS uses a standard 6 pin connector and communicates via a two wire universal asynchronous receiver/transmitter (UART. ) The PmodGPS also has a two pin connector for control of the NRST pin to the module and the radio technical commission for maritime services or RTCM pin for differential global positioning system (DGPS) data using RTCM protocols. The PmodGPS uses UART protocol for data transmission and reception. The interface operates at a default baud rate of 9.6KBd, 8 data bits, no parity and with single stop bits. However, users can change the baud rate to predefined values that range from 4.8KBd to 115.2KBd. The PmodGPS uses sentences based on National Marine Electronics Association (NMEA) protocols for data output.
  • Integrated ceramic GPS antenna
  • Standard UART interface
  • Input voltage from 3V to 3.6V
  • A 10Hz maximum update rate (1Hz default rate)
  • 3m 2D accuracy without aid
  • Low power consumption (24mA tracking and 30mA during acquisition)
  • Ultra high sensitivity of -165dBm
  • A 515m/s maximum velocity and 18, 000m maximum altitude
  • Auto switchover to external antenna
  • 12.5mm coin cell retainer for battery backup of GPS, RTCC and almanac

Toepassingen

Communications & Networking, Wireless
