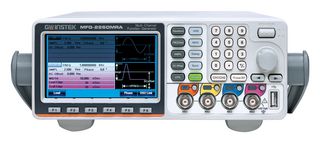

MFG-2260MRA
Function Generator, Arbitrary, Pulse, RF, 2 Channel, 60 MHz, MFG2000 Series
Neem contact met mij op wanneer het product weer op voorraad is
| Hoeveelheid | |
|---|---|
| 1+ | 1.177,000 € |
Productgegevens
Productoverzicht
MFG-2000 series multi-channel function generator, which has up to 5 simultaneous output channels, including CH1 and CH2 equivalent performance dual channel arbitrary function generator with the maximum 60MHz for both channels; RF signal generator, a standard AFG, which produces the maximum 320MHz sine wave and various modulation RF signals; pulse generator, whose frequency reaches 25MHz; power amplifier, which is ideal for audio range. The above-mentioned five different functionality channels are separately or totally allocated on 10 models, which extend from the basic single-channel AFG with pulse generator models to five-channel models so as to satisfy various educational and industrial applications.
Toepassingen
Test & Measurement
Opmerkingen
In addition, we offer standard calibration service for this product. Visit our calibration service page for more details.
Technische specificaties
Arbitrary, Function, Pulse, RF
MFG-2000 Series
AM, ASK, FM, FSK, PM, PSK, PWM
-
2 Channel
60MHz
1 Year
No SVHC (10-Jun-2022)
