EVAL3K3WBIDIPSFBTOBO1

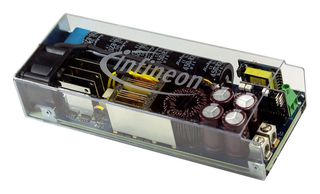

EVAL3K3WBIDIPSFBTOBO1 is a 3300W, 54V, bi-directional phase-shift full-bridge (PSFB) evaluation board with 600V CoolMOS™ CFD7 and XMC™. This evaluation board introduces a highly efficient complete Infineon system solution for a 3300W bi-directional DC-DC converter targeting telecom, battery formation power and industrial robotics applications. Infineon’s 600V CoolMOS™ CFD7 superjunction MOSFET in ThinPAK package is the most recent and best performance fast body diode device. Combined with a low parasitic package and an optimized layout, it achieves great performance with minimum stress. The innovative cooling concept presented in this board enables its remarkable performance. This board achieves 98% efficiency in buck mode and 97% in boost mode. Typical applications include energy storage systems, telecom, battery formation power, industrial robotics and industrial automation.

• High efficiency PSFB
• High power density PSFB
• Bi-directional PSFB
• Digital controlled PSFB
• Novel integrated magnetics concept
• Novel SMD cooling concept
• Best and latest fast body diode HV technology from Infineon
• Best and latest LV synchronous rectifiers technology from Infineon
• Bi-directional capability of PSFB (patented)
• Novel integrated magnetics concept and Novel SMD cooling concept
