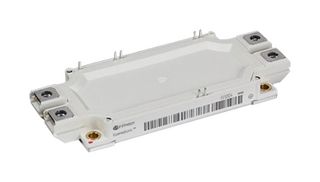

De afbeelding is alleen ter illustratie. Zie de productbeschrijving.
FabrikantINFINEON
Artikelnr. fabrikantFF450R17ME4BOSA1
Ordercode2726143
ProductreeksEconoDUAL 3
Ook bekend alsFF450R17ME4, SP000408712
Technische datasheet
17 Op Voorraad
10 U kunt nu voorraad reserveren
Levering binnen 1-2 werkdagen
Bestel vóór 17:00 uur - standaardverzending
Hoeveelheid | |
---|---|
1+ | 174,300 € |
5+ | 167,520 € |
10+ | 160,740 € |
Prijs voor:Each
Minimum: 1
Meerdere: 1
174,30 € (excl. BTW)
Onderdeelnr. toevoegen / Regelopmerking
Wordt alleen voor deze bestelling toegevoegd aan uw Orderbevestiging, Factuur en Verzendnota.
Dit nummer wordt toegevoegd aan de Bestelbevestiging, Factuur, Verzendnota, E-mail met Webbevestiging en Productetiket.
Productgegevens
FabrikantINFINEON
Artikelnr. fabrikantFF450R17ME4BOSA1
Ordercode2726143
ProductreeksEconoDUAL 3
Ook bekend alsFF450R17ME4, SP000408712
Technische datasheet
IGBT ConfigurationDual
Transistor PolarityN Channel
DC Collector Current600A
Continuous Collector Current600A
Collector Emitter Saturation Voltage1.95V
Collector Emitter Saturation Voltage Vce(on)1.95V
Power Dissipation Pd2.5kW
Power Dissipation2.5kW
Junction Temperature Tj Max150°C
Operating Temperature Max150°C
Collector Emitter Voltage V(br)ceo1.7kV
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage Max1.7kV
IGBT TechnologyIGBT 4 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoDUAL 3
SVHCNo SVHC (21-Jan-2025)
Productoverzicht
EconoDUAL™ 3module with trench/fieldstop IGBT4 and emitter controlled 3 diode and NTC suitable for motor drives, servo drives, UPS systems and wind turbines.
- Low VCEsat
- VCEsat with positive temperature coefficient
- High power density
- Isolated base plate
Waarschuwingen
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technische specificaties
IGBT Configuration
Dual
DC Collector Current
600A
Collector Emitter Saturation Voltage
1.95V
Power Dissipation Pd
2.5kW
Junction Temperature Tj Max
150°C
Collector Emitter Voltage V(br)ceo
1.7kV
IGBT Termination
Press Fit
IGBT Technology
IGBT 4 [Trench/Field Stop]
Product Range
EconoDUAL 3
Transistor Polarity
N Channel
Continuous Collector Current
600A
Collector Emitter Saturation Voltage Vce(on)
1.95V
Power Dissipation
2.5kW
Operating Temperature Max
150°C
Transistor Case Style
Module
Collector Emitter Voltage Max
1.7kV
Transistor Mounting
Panel
SVHC
No SVHC (21-Jan-2025)
Technische documenten (2)
Aanverwante producten
3 gevonden producten
Wetgeving en milieu
Land van oorsprong:
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Hungary
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Hungary
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Tariefnummer:85412900
US ECCN:EAR99
EU ECCN:NLR
RoHS-compliantie:Ja
RoHS
Voldoet aan RoHS-richtlijn voor ftalaten:Ja
RoHS
SVHC:No SVHC (21-Jan-2025)
Download conformiteitsverklaring
Conformiteitsverklaring
Gewicht (kg):.000356
