34461A PROMO

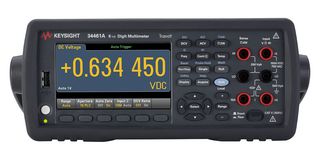

34461A PROMO is a digital multimeter. It is a 6.5 digit Truevolt DMM with Truevolt technology for greater accuracy and quicker measurement insights. It turns lots of data into results quickly with Truevolt series DMM new graphical display, advanced analysis modes, and built-in math functions. It offers Truevolt technology that provides measurement and display capabilities as user've never experienced before. Keysight's exclusive Truevolt technology is based on analogue-to-digital converter technology and eliminates extraneous factors like noise, injected current, and input bias current from measurements to give user the highest measurement accuracy. This new technology allows user to focus more on the quality of users designs rather than worrying about the quality of user's measurements.

• Measure with confidence, with 35ppm basic DCV accuracy
• Test low power devices with low DC current measurement range from 100µA to 10A
• Flexibly automate measurements over USB or LAN/LXI core interface
• 1,000 rdgs/s max reading rate, 10,000 rdgs memory
• 100 ohm to 100Mohm 2- and 4-wire resistance
• 1nF to 100µF capacitance, RTD/PT100, thermistor temperature
• 100μA to 10A DCI/ACI, 50/60/400Hz ± 10% power line frequency
• Power supply is 100/120 (127)/220 (230)/240 ACV ± 10%, CAT II
• 3Hz to 300KHz frequency, USB, LAN/LXI core IO interface
• Bench dimension (W x H x D) is 261.2mm x 103.8mm x 303.2mm

Inhoud

34461A series is a digital multimeter, Standard 3-year warranty (90 days for unserialized accessories), 34138A test lead set, USB cable, Power cord, Certificate of calibration.

Opmerkingen

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
