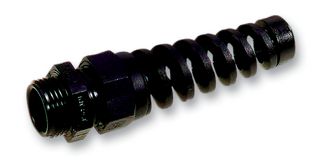

De afbeelding is alleen ter illustratie. Zie de productbeschrijving.
FabrikantLAPP
Artikelnr. fabrikant53015800
Ordercode1204185
ProductreeksSKINTOP BS Series
Technische datasheet
7.923 Op Voorraad
Heeft u meer nodig?
Levering binnen 1-2 werkdagen
Bestel vóór 17:00 uur - standaardverzending
Hoeveelheid | |
---|---|
1+ | 2,250 € |
10+ | 1,840 € |
100+ | 1,710 € |
500+ | 1,550 € |
1000+ | 1,450 € |
2500+ | 1,390 € |
Prijs voor:Each
Minimum: 1
Meerdere: 1
2,25 € (excl. BTW)
Onderdeelnr. toevoegen / Regelopmerking
Wordt alleen voor deze bestelling toegevoegd aan uw Orderbevestiging, Factuur en Verzendnota.
Dit nummer wordt toegevoegd aan de Bestelbevestiging, Factuur, Verzendnota, E-mail met Webbevestiging en Productetiket.
Productgegevens
FabrikantLAPP
Artikelnr. fabrikant53015800
Ordercode1204185
ProductreeksSKINTOP BS Series
Technische datasheet
Thread SizePG7
Cable Diameter Min2.5mm
Cable Diameter Max6.5mm
Cable Gland MaterialNylon (Polyamide)
Gland ColourBlack
IP / NEMA RatingIP68
Product RangeSKINTOP BS Series
SVHCNo SVHC (07-Nov-2024)
Productoverzicht
The 53015800 is a polyamide based Cable Gland with spiral strain relief, particularly used for flexible cables a handheld equipment, moving machine parts and in many applications of the instrument industry. SKINTOP® BS with spiral affords protection against conductor damage. Cables for electrical appliances and machinery that are moved under normal use must be protected against excessive bending as required in accordance with VDE 0700-1.
- PG connection thread acc. to DIN 40430
- Reliable bending and anti-kink protection
- Cable conservation
- Functional reliability
- To protect flexible cables
- Black (RAL9005) polyamide, UV-resistant
- -20 to 100°C Temperature range
- Protection rating IP 68 - 5 bar
- UL listed/UR recognized (UL File Nr. E79903); CE compliant
Toepassingen
Robotics, Lighting, Audio, Industrial Automation, Portable Devices, Industrial
Opmerkingen
Locknut not included — Order Skintop® GMP-GL counter nut 53019200 separately.
Technische specificaties
Thread Size
PG7
Cable Diameter Max
6.5mm
Gland Colour
Black
Product Range
SKINTOP BS Series
Cable Diameter Min
2.5mm
Cable Gland Material
Nylon (Polyamide)
IP / NEMA Rating
IP68
SVHC
No SVHC (07-Nov-2024)
Technische documenten (1)
Aanverwante producten
2 gevonden producten
Wetgeving en milieu
Land van oorsprong:
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Switzerland
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Switzerland
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Tariefnummer:39269097
US ECCN:EAR99
EU ECCN:NLR
RoHS-compliantie:Ja
RoHS
Voldoet aan RoHS-richtlijn voor ftalaten:Ja
RoHS
SVHC:No SVHC (07-Nov-2024)
Download conformiteitsverklaring
Conformiteitsverklaring
Gewicht (kg):.006
