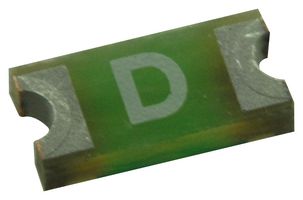

0466.250NR

The 0466.250NR is a 0.25A/125V very fast acting surface mount Fuse with advanced high temperature substrate body, 100% tin plated over nickel over copper termination and conformal coating element cover. The 466-series small (1206 size) thin-film device is designed for secondary protection of circuits used in space constrained applications. Alloy-based element construction provides superior inrush withstand characteristics (I²t) over ceramic or glass-based 1206 chip fuse products. Flat top surface for pick-and-place operations. Product is marked on top surface with code to allow amperage rating identification without testing. Low profile for height sensitive applications. This fuse is compatible with lead-free solders and higher temperature profiles.

• Alloy based element construction
• Flat top surface for pick-and-place operations
• Low profile for height sensitive applications
• 207.01mV Nominal voltage drop
• 0.0518W Nominal power dissipation
• 0.691Ω Nominal cold resistance
• -55 to 90°C Operating temperature range

Toepassingen

Safety, Portable Devices, Consumer Electronics, Computers & Computer Peripherals
