FabrikantMEAN WELL
Artikelnr. fabrikantGST120A24-P1M
Ordercode2815847
ProductreeksGST120A Series
Technische datasheet
379 Op Voorraad
425 U kunt nu voorraad reserveren
Levering binnen 1-2 werkdagen
Bestel vóór 17:00 uur - standaardverzending
Hoeveelheid | |
---|---|
1+ | 40,990 € |
5+ | 39,770 € |
10+ | 38,530 € |
Prijs voor:Each
Minimum: 1
Meerdere: 1
40,99 € (excl. BTW)
Onderdeelnr. toevoegen / Regelopmerking
Wordt alleen voor deze bestelling toegevoegd aan uw Orderbevestiging, Factuur en Verzendnota.
Dit nummer wordt toegevoegd aan de Bestelbevestiging, Factuur, Verzendnota, E-mail met Webbevestiging en Productetiket.
Productgegevens
FabrikantMEAN WELL
Artikelnr. fabrikantGST120A24-P1M
Ordercode2815847
ProductreeksGST120A Series
Technische datasheet
Power Supply ApplicationsITE
No. of Outputs1 Output
Output Power Max120W
Output Voltage - Output 124VDC
Output Current - Output 15A
Output Voltage - Output 2-
Output Current - Output 2-
Output ConnectorBarrel Plug Center Positive 2.5mm x 5.5mm x 11mm
Output Voltage - Output 3-
Output Current - Output 3-
Power Supply Output TypeFixed
Input Voltage VAC85V AC to 264V AC
Product RangeGST120A Series
Plug Type-
SVHCNo SVHC (27-Jun-2024)
Productoverzicht

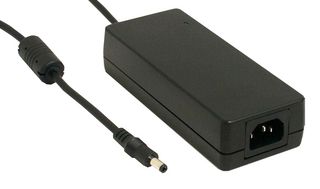

GST120A24-P1M is GS120 series 120W AC-DC industrial adaptor. It comply with EISA 2007, NRCan, AU/NZ MEPS and EU ErP. It includes short circuit, overload, over voltage, over temperature. Approved by UL60950-1, CSA C22.2, TUV EN60950-1, PSE J60950-1(except for 48V).
- Output DC voltage is 24V, output rated current is 5A, output rated power is 120W
- Input voltage range from 85 to 264VAC, 120 to 370VDC, efficiency is 81%
- Universal AC input / full range, built-in active PFC function
- No load power consumption<lt/>0.5W, energy efficiency Level Ⅴ
- 3 pole AC inlet IEC320-C14, class I power
- Fully enclosed plastic case, LED indicator for power on
- Working temperature range from -30 to +70℃
- 2 years warranty
- Dimension (L x W x H) is 167 x 67 x 35mm
Technische specificaties
Power Supply Applications
ITE
Output Power Max
120W
Output Current - Output 1
5A
Output Current - Output 2
-
Output Voltage - Output 3
-
Power Supply Output Type
Fixed
Product Range
GST120A Series
SVHC
No SVHC (27-Jun-2024)
No. of Outputs
1 Output
Output Voltage - Output 1
24VDC
Output Voltage - Output 2
-
Output Connector
Barrel Plug Center Positive 2.5mm x 5.5mm x 11mm
Output Current - Output 3
-
Input Voltage VAC
85V AC to 264V AC
Plug Type
-
Technische documenten (1)
Wetgeving en milieu
Land van oorsprong:
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:China
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:China
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Tariefnummer:85044095
US ECCN:EAR99
EU ECCN:NLR
RoHS-compliantie:Ja
RoHS
Voldoet aan RoHS-richtlijn voor ftalaten:Ja
RoHS
SVHC:No SVHC (27-Jun-2024)
Download conformiteitsverklaring
Conformiteitsverklaring
Gewicht (kg):.67
