RN-XV-RD2

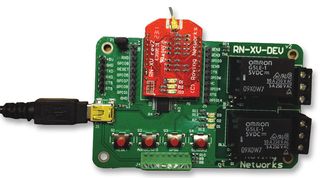

RN-XV-RD2 is a dual relay I/O reference design that demonstrates the RN171XV series of WiFi modules. This convenient reference design includes a USB cable that connects directly from the board to a PC for programming the module over the UART. The board has 2 relays capable of switching up to 240V and multiple pushbuttons for reset, ad hoc/WPS mode and AP mode. Also includes status LEDs and jumpers for quickly and easily evaluating the RN171XV series of modules.

• Reference design for evaluating the RN171XV 802.11 b/g WiFi module
• Contains two 10A relays capable of switching up to 240V
• Built in temperature sensor
• External temperature probe connector
• 3 status LEDs that mimic the LEDs on the RN171XV module
• 4 pushbutton switches and jumpers to simplify development
• 10 GPIO pins accessible via the 3.3V headers
• Supports several RN171XV antenna options: Wire, SMA connector, U. FL connector

Toepassingen

Communications & Networking, Wireless

Inhoud

RN-XV-RD2 reference design board, USB cable.

Opmerkingen

90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
