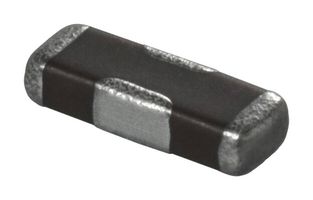

NFM3DCC223R1H3L
Feedthrough Capacitor, Three Terminal, 0.022 µF, 50 V, 300 mA, 1206 [3216 Metric], Surface Mount
4.000 U kunt nu voorraad reserveren
| Hoeveelheid | |
|---|---|
| 10+ | 0,371 € |
| 100+ | 0,355 € |
| 500+ | 0,342 € |
| 1000+ | 0,329 € |
| 2000+ | 0,315 € |
| 4000+ | 0,302 € |
Productgegevens
Productoverzicht
The NFM3DCC223R1H3L is a 300mA 3-terminal 1-circuit SMD Chip EMIFIL® EMI Suppression Filter for general electronic equipment. It can reduce residual inductance to an extremely low level making it excellent for noise suppression at high frequencies.
- 100MΩ Minimum insulation resistance
- -55 to 125°C Operating temperature range
Toepassingen
Industrial, Consumer Electronics
Waarschuwingen
Do not use products beyond the rated current and rated voltage as this may create excessive heat and deteriorate the insulation resistance.
Opmerkingen
Solderability of Tin plating termination chip might be deteriorated when low temperature soldering profile where peak solder temperature is below the tin melting point is used.
Technische specificaties
0.022µF
300mA
Surface Mount
-55°C
0.3ohm
-
No SVHC (21-Jan-2025)
50V
1206 [3216 Metric]
-20%, +50%
125°C
1Gohm
NFM Series
Technische documenten (1)
Wetgeving en milieu
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Japan
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
RoHS
RoHS
Conformiteitsverklaring
