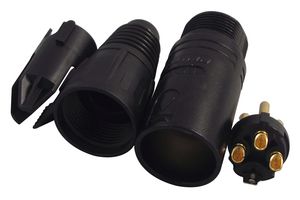

De afbeelding is alleen ter illustratie. Zie de productbeschrijving.
Niet langer geproduceerd
Alternatieven voor NC3MX-B
3 gevonden producten
Productoverzicht
The NC3MXB is a 3-pole Male XLR Cable Connector with POM strain relief, latch locking device, black metal housing and silver over nickel plated brass contacts. It has polyamide insert, polyurethane boot, black chromium-plated zinc die-cast shell and zinc die-cast locking element. This X series connector can be assembled easily with only 4 parts and no screws, boot with rubber gland gives high protection against bending stresses.
- Rugged zinc die-cast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
- Coloured rings and boots available for coding and marking
- UL94HB Flammability rating
- IP40 Protection rating
- Complies with IEC 61076-2-103 standard
- Solderability complies with IEC 68-2-20 standard
- ≤3mΩ Contact resistance
- <gt/>10GΩ Insulation resistance
- 16A Current rating per contact
- <lt/>50V Voltage rating
- -30 to +80°C Temperature range
Toepassingen
Audio
Technische specificaties
No. of Contacts
3Contacts
Connector Mounting
Cable Mount
Connector Body Material
Metal Body
Gender
Plug
Contact Plating
Gold Plated Contacts
Product Range
X
Technische documenten (4)
Aanverwante producten
1 product gevonden
Wetgeving en milieu
Land van oorsprong:
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Switzerland
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Switzerland
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Tariefnummer:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS-compliantie:Ja
RoHS
Voldoet aan RoHS-richtlijn voor ftalaten:Ja
RoHS
Download conformiteitsverklaring
Conformiteitsverklaring
Gewicht (kg):.032
