EVBQE128

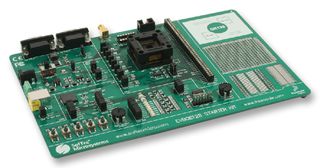

The EVBQE128 evaluation board has been designed for the evaluation, demonstration and debugging of the NXP Flexis QE128 microcontrollers (MC9S08QE128 and MCF51QE128). The evaluation board can be used as a standalone application or can be controlled by a host PC via its built-in micro DART interface.

• An 80pin LQFP socket accepting either the MC9S08QE128 or the MCF51QE128 microcontroller
• A crystal oscillator, a provision for a clock module
• Jumpers to select the clock source
• A BDM connector for in-circuit debugging/programming with an external instrument
• A female header connectors with all of the MCU signals
• A 12V DC barrel input connector (2.1mm)
• A jumper to select the power supply source (USB bus or barrel connector)
• A power on/off switch
• A circuitry for driving and external LCD
• A series of jumpers to connect/disconnect the above controls to/from the microcontroller

Toepassingen

Consumer Electronics, Industrial, Security, Imaging, Video & Vision, Medical, Communications & Networking, Test & Measurement

Inhoud

The EVBQE128 evaluation board, 80pin LQFP MC9S08QE128 and MCF51QE128 microcontrollers, A USB cable, A pick up vacuum pump, A universal, 12V DC power supply, System software DVD ROM, including CodeWarrior development Studio, A Quick Start Guide sheet.
