TWR-MCF51JE-KIT

The TWR-MCF51JE-KIT is a ColdFire Flexis MCF51JE low power USB Tower System Module. The MCF51JE256/128 (JE256/128) provides ultra low power operation, USB connectivity and high measurement accuracy, all in a single 32bit microcontroller (MCU), allowing designers to develop a more fully featured system at a lower cost. The JE256/128 integrates high resolution analog to digital converter (ADC) and digital to analog converter (DAC) modules, rich peripheral set including a USB 2.0 host/device/on the go controller, multiple serial interfaces and an external bus interface. The development board as a standalone debug tool and can also be combined and used as part of the modular tower system development platform.

• Integrated open source BDM debugging tool
• Small form factor (59mm x 90mm)
• 256KB flash, 32KB SRAM on chip memory
• Analog comparator with 5bit DAC
• 12bit SAR ADC high resolution ADC
• USB device/host/on the go controller
• 2 x serial peripheral interface (SPI)
• 2 x serial communication interface (SCI)
• I²C interface

Toepassingen

Consumer Electronics, Industrial, Communications & Networking, Lighting, Medical, Portable Devices

Inhoud

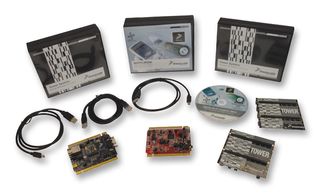

TWR-SER (Tower System Serial Module), TWR-ELEV (Tower System Elevator Modules), Necessary cables.
