16.575 Op Voorraad
Heeft u meer nodig?
EXPRESLEVERING volgende werkdag
Bestel voor 17.00 uur
GRATIS standaardlevering
voor bestellingen van 0,00 € en hoger
Nauwkeurige levertijden worden berekend bij het afrekenen
| Hoeveelheid | |
|---|---|
| 5+ | 0,156 € |
| 10+ | 0,138 € |
| 100+ | 0,131 € |
| 500+ | 0,112 € |
| 1000+ | 0,0998 € |
| 5000+ | 0,0876 € |
Prijs voor:Each
Minimum: 5
Meerdere: 5
0,78 € (excl. BTW)
Regelopmerking
Wordt alleen voor deze bestelling toegevoegd aan uw Orderbevestiging, Factuur en Verzendnota.
Dit nummer wordt toegevoegd aan de Bestelbevestiging, Factuur, Verzendnota, E-mail met Webbevestiging en Productetiket.
Productgegevens
FabrikantONSEMI
Artikelnr. fabrikant1N5818RLG
Ordercode1431029
Productreeks1N5818
Technische datasheet
Repetitive Peak Reverse Voltage30V
Average Forward Current1A
Diode ConfigurationSingle
Diode Case StyleDO-41 (DO-204AL)
No. of Pins2Pins
Forward Voltage Max550mV
Forward Surge Current25A
Operating Temperature Max125°C
Diode MountingThrough Hole
Product Range1N5818
Qualification-
SVHCLead (27-Jun-2024)
Productoverzicht

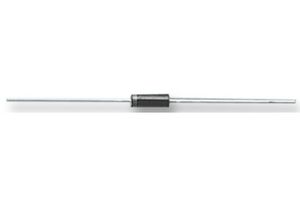

The 1N5818RLG is an axial-lead Schottky Rectifier with epoxy moulded case. This series employs the Schottky barrier principle in a large area metal-to-silicon power diode. The state-of-the-art geometry features chrome barrier metal, epitaxial construction with oxide passivation and metal overlap contact. It is ideally suited for use as rectifiers in low-voltage, high-frequency inverters, free-wheeling diodes and polarity protection diodes.
- Cathode indicated by polarity band
- Extremely low VF
- Low stored charge, majority carrier conduction
- Low-power loss/high-efficiency
- All external surfaces corrosion-resistant
Toepassingen
Power Management, Industrial
Technische specificaties
Repetitive Peak Reverse Voltage
30V
Diode Configuration
Single
No. of Pins
2Pins
Forward Surge Current
25A
Diode Mounting
Through Hole
Qualification
-
Average Forward Current
1A
Diode Case Style
DO-41 (DO-204AL)
Forward Voltage Max
550mV
Operating Temperature Max
125°C
Product Range
1N5818
SVHC
Lead (27-Jun-2024)
Technische documenten (2)
Alternatieven voor 1N5818RLG
4 gevonden producten
Wetgeving en milieu
Land van oorsprong:
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:China
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:China
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Tariefnummer:85411000
US ECCN:EAR99
EU ECCN:NLR
RoHS-compliantie:Y-Ex
RoHS
Voldoet aan RoHS-richtlijn voor ftalaten:Ja
RoHS
SVHC:Lead (27-Jun-2024)
Download conformiteitsverklaring
Conformiteitsverklaring
Gewicht (kg):.001
Producttraceerbaarheid
