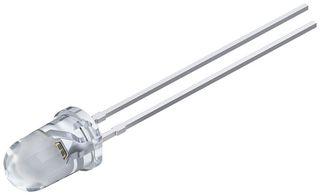

De afbeelding is alleen ter illustratie. Zie de productbeschrijving.
FabrikantAMS OSRAM GROUP
Artikelnr. fabrikantSFH 213
Ordercode2981693
Ook bekend alsQ62702P0930
Technische datasheet
4.602 Op Voorraad
3.000 U kunt nu voorraad reserveren
Levering binnen 1-2 werkdagen
Bestel vóór 17:00 uur - standaardverzending
Hoeveelheid | |
---|---|
5+ | 0,786 € |
10+ | 0,590 € |
25+ | 0,577 € |
50+ | 0,494 € |
100+ | 0,424 € |
150+ | 0,361 € |
200+ | 0,354 € |
250+ | 0,347 € |
Prijs voor:Each
Minimum: 5
Meerdere: 5
3,93 € (excl. BTW)
Onderdeelnr. toevoegen / Regelopmerking
Wordt alleen voor deze bestelling toegevoegd aan uw Orderbevestiging, Factuur en Verzendnota.
Dit nummer wordt toegevoegd aan de Bestelbevestiging, Factuur, Verzendnota, E-mail met Webbevestiging en Productetiket.
Productgegevens
FabrikantAMS OSRAM GROUP
Artikelnr. fabrikantSFH 213
Ordercode2981693
Ook bekend alsQ62702P0930
Technische datasheet
No. of Pins2Pins
Diode Case StyleT-1 3/4 (5mm)
Wavelength of Peak Sensitivity850nm
Angle of Half Sensitivity ±10°
Dark Current1000pA
Operating Temperature Min-40°C
Operating Temperature Max100°C
Product Range-
Automotive Qualification Standard-
SVHCNo SVHC (21-Jan-2025)
Productoverzicht
SFH 213 is a radial T1 3/4 silicon PIN photodiode LED. Applications include access control and security, appliances and tools.
- Clear epoxy package
- ESD: 2kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- Short switching time (typ. 5ns)
- 5mm LED plastic package
- ≥ 110µA photocurrent (Ev = 1000 lx; Std. Light A; VR = 5V)
- Operating temperature range from -40°C to 100°C
- Total power dissipation is 150mW max at TA = 25°C
- Wavelength of max sensitivity is 850nm typ at TA = 25°C
- Forward voltage is 1.3V typ at IF = 100mA; E = 0
- Short-circuit current is 125µA typ at Ev = 1000 lx; Std. Light A; VR = 0V
Waarschuwingen
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technische specificaties
No. of Pins
2Pins
Wavelength of Peak Sensitivity
850nm
Dark Current
1000pA
Operating Temperature Max
100°C
Automotive Qualification Standard
-
Diode Case Style
T-1 3/4 (5mm)
Angle of Half Sensitivity ±
10°
Operating Temperature Min
-40°C
Product Range
-
SVHC
No SVHC (21-Jan-2025)
Technische documenten (2)
Wetgeving en milieu
Land van oorsprong:
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Malaysia
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Malaysia
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Tariefnummer:85414900
US ECCN:EAR99
EU ECCN:NLR
RoHS-compliantie:Ja
RoHS
Voldoet aan RoHS-richtlijn voor ftalaten:Ja
RoHS
SVHC:No SVHC (21-Jan-2025)
Download conformiteitsverklaring
Conformiteitsverklaring
Gewicht (kg):.002268
