ST25DV-DISCOVERY

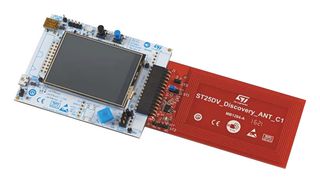

The ST25DV-DISCOVERY from STMicroelectronics is a discovery kit for ST25DV04K dynamic NFC/RFID tag. This demonstration kit evaluates features and capabilities of ST25DV04K. The kit is composed of two boards: MB1283 (ST25DX_Discovery_Mboard) which is a microprocessor mother board and includes complement of hardware and software tools allowing the use of STM32 Nucleo ecosystem and powered through one USB connector. The MB1284 (ST25DV_Discovery_ANT_C1) daughter board which embeds ST25DV04K dynamic NFC / RFID tag device. This daughter board provides a buffering data transfer capability and has class 1 antenna. The dedicated software stored in flash memory is provided. The communication link between boards is an I2C serial and power is provided by processor card or via energy harvesting. Specific data lines complete pin connector assignment shared between cards. A variety of demonstrations can be performed with this kit and allows users to develop and to test their own applications.

• Two ready to use printed circuit boards (PCB)
• MB1283 with STM32F415VGT6 LQFP100 32bit MCU, LCD colour screen (320x200 pixels), touch screen driver
• Different colour LEDs (power, user, ST link), user push button, joystick for menu selection
• Reset button, onboard ST link for microcontroller firmware upgrade and debug, ST link mini USB
• User micro USB, USB micro or mini connector for board powering
• Demonstration use cases stored in memory
• MB1284 with 45mm x 75mm, 13.56MHz inductive antenna etched on the PCB
• I2C interface connector
• Energy harvesting output (VOUT) with a 10nF capacitance filtering circuit
• GPO configurable as RF WIP/BUSY output, to indicate that an RF operation is ongoing

Toepassingen

Embedded Design & Development

Inhoud

MB1283 (ST25DX_Discovery_Mboard) mother board, MB1284 (ST25DV_Discovery_ANT_C1) daughter board.
