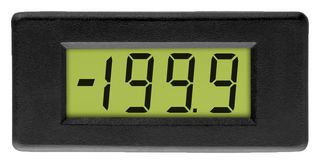

DPM 1AS-BL

The DPM 1AS-BL is a Compact Panel Meter features a 3-1/2-digit LCD with 5.5mm digit height, one-piece snap-in housing. With 200mVDC full scale readings, auto-zero, auto-polarity and user selectable decimal points, this meter can be used in 3 to 7.5V or 6 to 15V operation. It offers a negative rail generator which enables the meter to measure a signal referenced to its own power supply GND. LED backlighting ensures excellent readability under low light conditions. The design of the panel meter housing allows the module to be easily snapped into a panel. It is intended to replace the DPM 1, DPM 1S, DPM 1-BL and DPM 1S-BL in many applications usually requiring only minor circuit modifications.

• ±1 Count linearity
• ±0.1% Accuracy

Toepassingen

Industrial, Test & Measurement, Power Management, Portable Devices
