De afbeelding is alleen ter illustratie. Zie de productbeschrijving.
FabrikantMICROCHIP
Artikelnr. fabrikantEV96B94A
Ordercode4178974
ProductreeksPIC32 Family PIC32CX-BZ2 Series Microcontrollers
6 Op Voorraad
Heeft u meer nodig?
EXPRESLEVERING volgende werkdag
Bestel voor 17.00 uur
GRATIS standaardlevering
voor bestellingen van 0,00 € en hoger
Nauwkeurige levertijden worden berekend bij het afrekenen
Hoeveelheid | |
---|---|
1+ | 59,920 € |
Prijs voor:Each
Minimum: 1
Meerdere: 1
59,92 € (excl. BTW)
Onderdeelnr. toevoegen / Regelopmerking
Wordt alleen voor deze bestelling toegevoegd aan uw Orderbevestiging, Factuur en Verzendnota.
Dit nummer wordt toegevoegd aan de Bestelbevestiging, Factuur, Verzendnota, E-mail met Webbevestiging en Productetiket.
Productgegevens
FabrikantMICROCHIP
Artikelnr. fabrikantEV96B94A
Ordercode4178974
ProductreeksPIC32 Family PIC32CX-BZ2 Series Microcontrollers
Silicon ManufacturerMicrochip
No. of Bits32bit
Silicon Family NamePIC32
Core ArchitectureARM
Core Sub-ArchitectureCortex-M4F
Silicon Core NumberPIC32CX1012BZ25048
Kit ContentsWBZ451PE Module, Type-A Male to Micro-B USB Cable
Product RangePIC32 Family PIC32CX-BZ2 Series Microcontrollers
SVHCNo SVHC (21-Jan-2025)
Productoverzicht

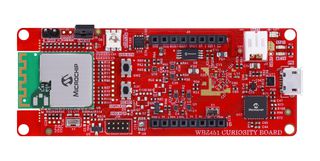

EV96B94A is a curiosity development board, based on the WBZ451PE module, and is the best development platform for evaluating the PIC32CX-BZ2 family of MCUs. It comes preconfigured with an out-of-the-box multi-protocol demo application and features a temperature sensor, a current measurement header, an RGB LED and a MikroElectronika mikroBUSTM socket to attach a plethora of sensors and add-on boards.
- WBZ451PE Bluetooth low energy and zigbee RF module, USB or Li-Po battery powered
- On-board programmer/debug circuit using PKoB4 based on Microchip SAME70 MCU
- Microchip MCP73871 Li-Ion/LiPo battery charger with power path management
- mikroBUS socket to expand functionality using MikroElectronika click adapter boards
- RGB LED connected to pulse width modulation (PWM), one reset switch
- One user-configurable switch, one user LED, 32.768KHz crystal
- Microchip SST26VF064B, 64Mbit external QSPI flash memory
- Microchip MCP9700A, low power analogue voltage temperature sensor
- 10-pin ARM serial wire debug (SWD) header for external programmer/debugger
Technische specificaties
Silicon Manufacturer
Microchip
Silicon Family Name
PIC32
Core Sub-Architecture
Cortex-M4F
Kit Contents
WBZ451PE Module, Type-A Male to Micro-B USB Cable
SVHC
No SVHC (21-Jan-2025)
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
PIC32CX1012BZ25048
Product Range
PIC32 Family PIC32CX-BZ2 Series Microcontrollers
Technische documenten (1)
Wetgeving en milieu
Land van oorsprong:
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:United States
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:United States
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Tariefnummer:84733080
US ECCN:5A992.c
EU ECCN:NLR
RoHS-compliantie:Ja
RoHS
Voldoet aan RoHS-richtlijn voor ftalaten:Ja
RoHS
SVHC:No SVHC (21-Jan-2025)
Download conformiteitsverklaring
Conformiteitsverklaring
Gewicht (kg):.0003
