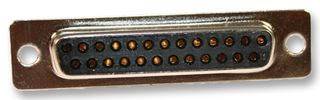

De afbeelding is alleen ter illustratie. Zie de productbeschrijving.
FabrikantNORCOMP
Artikelnr. fabrikant171-009-203L001
Ordercode2294225
Productreeks171 Series
Technische datasheet
1.738 Op Voorraad
5.000 U kunt nu voorraad reserveren
Levering binnen 1-2 werkdagen
Bestel vóór 17:00 uur - standaardverzending
Hoeveelheid | |
---|---|
1+ | 1,280 € |
10+ | 0,788 € |
100+ | 0,649 € |
500+ | 0,608 € |
1000+ | 0,559 € |
2500+ | 0,554 € |
Prijs voor:Each
Minimum: 1
Meerdere: 1
1,28 € (excl. BTW)
Onderdeelnr. toevoegen / Regelopmerking
Wordt alleen voor deze bestelling toegevoegd aan uw Orderbevestiging, Factuur en Verzendnota.
Dit nummer wordt toegevoegd aan de Bestelbevestiging, Factuur, Verzendnota, E-mail met Webbevestiging en Productetiket.
Productgegevens
FabrikantNORCOMP
Artikelnr. fabrikant171-009-203L001
Ordercode2294225
Productreeks171 Series
Technische datasheet
D Sub Connector TypeStandard
Product Range171 Series
No. of Contacts9Contacts
D Sub Shell SizeDE
Contact Termination TypeSolder Cup
Connector MountingCable Mount
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Connector Body MaterialSteel Body
SVHCNo SVHC (27-Jun-2024)
Productoverzicht
The 171-009-203L001 is a 9-way solder cup D-sub Receptacle with gold-plated phosphor bronze contacts. The connector comes with nickel-plated steel shell. Nickel shells have indents to provide grounding and additional retention.
- Non-removable contacts
- High performance, stamped contacts
- Glass-filled thermoplastic insulator (UL94V-0)
- 5A Current rating
- 1000MΩ Minimum insulation resistance
- 500VAC Voltage (for 1 minute)
Toepassingen
Industrial
Technische specificaties
D Sub Connector Type
Standard
Product Range
171 Series
D Sub Shell Size
DE
Connector Mounting
Cable Mount
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (27-Jun-2024)
Gender
Receptacle
No. of Contacts
9Contacts
Contact Termination Type
Solder Cup
Contact Material
Phosphor Bronze
Connector Body Material
Steel Body
Technische documenten (4)
Alternatieven voor 171-009-203L001
2 gevonden producten
Aanverwante producten
5 gevonden producten
Wetgeving en milieu
Land van oorsprong:
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Taiwan
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Taiwan
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Tariefnummer:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS-compliantie:Ja
RoHS
Voldoet aan RoHS-richtlijn voor ftalaten:Ja
RoHS
SVHC:No SVHC (27-Jun-2024)
Download conformiteitsverklaring
Conformiteitsverklaring
Gewicht (kg):.005
