SLWSTK6000B

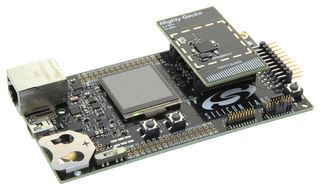

The SLWSTK6000B from Silicon Labs is an EFR32 Mighty Gecko Wireless Starter Kit. The Mighty Gecko wireless starter kit includes Zigbee and Thread software stacks, sample code and integrated debug adapter. Multiple radio boards enable developers to create a mesh network and evaluate Mighty Gecko module and SoCs. With the supporting Simplicity Studio suite of tools, developers can take advantage of graphical wireless application development, mesh networking debug and packet trace and visual energy profiling and optimization.

• Included devices EFR32MG12P432F1024GL125 and EFR32MG12P433F1024GL125
• Modular design supports different radio boards
• Expansion header allows easy expansion
• Integrated debug
• Packet trace support on both Ethernet and USB connections
• Coin cell support
• Supports AEM for battery measurement and energy profiler
• Simplicity studio features energy profiler, network analyzer, AppBuilder

Toepassingen

Embedded Design & Development

Inhoud

3 x wireless starter kit main board, 3 x EFR32MG 2.4GHz 19dBm radio board, 3 x EFR32MG 2.4GHz 10dBm radio board, AA battery board (supports running +19 from battery), Cables, EFR32MG getting started card.
