MAX98380EVSYS#
Kit de développement, MAX98380, Amplificateur de puissance audio, Classe D
Vous en voulez davantage ?
| Quantité | |
|---|---|
| 1+ | 272,040 € |
Informations produit
Aperçu du produit

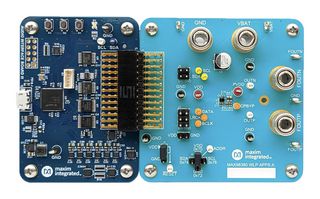

MAX98380EVSYS# is a Fully assembled and tested MAX98380 evaluation system to evaluate the MAX98380 boosted Class-D audio amplifier. The EV system consists of the MAX98380 development board (DEV board), Analog Devices Audio Interface Board III (AUDINT3), and a USB cable. It is recommended that the DEV board be evaluated with the AUDINT3 board, as an EV system. The MAX98380 supports standard I2S, left-justified, and TDM digital audio interfaces. The AUDINT3 board provides a USB-to-PCM interface in addition to a 1.8V VDD supply needed to evaluate the DEV board. The MAX98380 DEV board requires one additional supply input, 2.5V to 5.5V (VBAT) when evaluating using the AUDINT3 board.
- 2.5V to 5V single-supply operation
- USB audio streaming (EV system)
- I2S, left-justified, or TDM input
- Capacitive charge pump boost circuitry
- Fully assembled and tested
Contenu
MAX98380 development board, Audio interface board III, Micro-USB cable.
Spécifications techniques
Analog Devices
Amplificateur
Carte de développement MAX98380, Carte d'interface audio III AUDINT3, câble micro-USB
No SVHC (27-Jun-2024)
MAX98380
Amplificateur de puissance audio Classe D
-
Documents techniques (1)
Législation et Questions environnementales
Pays dans lequel la dernière étape de production majeure est intervenuePays d'origine :Philippines
Pays dans lequel la dernière étape de production majeure est intervenue
RoHS
RoHS
Certificat de conformité du produit
