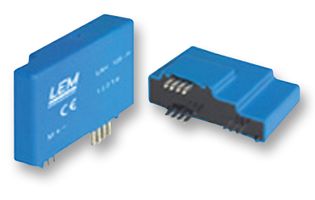

LAH 100-P

LAH 100-P is a current transducer. It is used for the measurement of current DC, AC pulsed with galvanic separation between the primary circuit (high power) and secondary circuit (electronic circuit). It is used in applications such as AC variable speed and servo motor drives, static converters for DC motor drives, battery supplied application, uninterruptible power supplies, switched mode power supplies, power supplies for welding applications.

• Closed loop (compensated) current transducer using the hall effect
• Printed circuit board mounting, insulated plastic case recognized according to UL-94-V0
• Excellent accuracy, very good linearity, low temperature drift
• Optimized response time, wide frequency bandwidth, wide insertion losses
• High immunity to external interference, current overload capability
• Supply voltage range from ±12V to 15V
• Primary nominal current rms is 100A, offset current is ±0.15mA maximum at (TA = 25°C)
• Frequency bandwidth is 200KHz, linearity error is 0.15%
• Ambient operating temperature range from -25°C to 85°C
