GU112X16G-7806A
Afficheur VFD, matrice de points, 112 x 16, 11.45mm x 52.5mm, Parallèle/Série 250 mA, 4.75V à 5.25 V
Contactez-moi quand le produit sera à nouveau en stock
| Quantité | |
|---|---|
| 1+ | 97,330 € |
| 5+ | 91,990 € |
| 10+ | 86,580 € |
| 50+ | 75,250 € |
Informations produit
Aperçu du produit

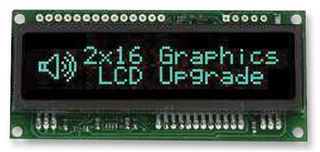

The GU112X16G-7806A is a Dot Graphic VFD Module features high brightness blue-green display. The 4/8-bit parallel and serial bidirectional interfaces are 5V TTL/CMOS compatible. The command set is LCD compatible with extended graphic functions. It features LCD parallel/SPI/Async interface and scroll + image + fill commands. This module has a fast latching 8-bit data bus. The RS and R/W control lines should be set prior to the rising edge of the E enable line. Data is clocked in on the falling edge of the enable line. The busy line should be checked before sending data.
- ASCII+ Fonts
- 7806A LCD emulation + graphics
Contenu
VFD Module, Vacuum fluorescent display glass, VF drivers and Microcontroller ICs with refresh RAM, Character generator and Interface logic.
Avertissements
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Spécifications techniques
112 x 16
Graphique en points
5.25V
-40°C
Parallèle, Série
No SVHC (14-Jun-2023)
11.45mm x 52.5mm
4.75V
250mA
85°C
-
Documents techniques (1)
Législation et Questions environnementales
Pays dans lequel la dernière étape de production majeure est intervenuePays d'origine :Great Britain
Pays dans lequel la dernière étape de production majeure est intervenue
RoHS
RoHS
Certificat de conformité du produit
