SLWSTK6023A
KIT DEMARRAGE, BLUETOOTH LOW ENERGY, SOC
Informations produit
Aperçu du produit

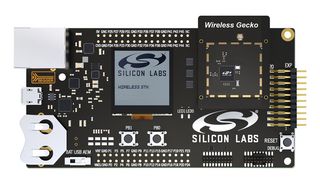

EFR32xG21 Bluetooth Starter Kit supports Bluetooth 5.1 and comes ready to connect to your phone via the Silicon Labs Bluetooth LE mobile app. The EFR32xG21 2.4 GHz wireless SOC is optimized for line-powered BLE and Bluetooth mesh applications, including connected lighting, smart plugs, gateways and voice assistants. Based on Silicon Labs EFR32xG21 2.4GHz SoC with 1024K of Flash and an 80MHz Cortex M33 MCU, the 10dBm Radio Board plugs directly into the Wireless Starter Kit Mainboard which that provides for easy evaluation and development of wireless applications.
- Modular design supports different radio boards
- Expansion header allows easy expansion
- Integrated debug
- 2x push buttons
- 2x colour LEDs
- Packet Trace support on both Ethernet and USB connections
- Coin cell support
- Supports AEM (Advanced Energy Monitor) for battery measurement and energy profiler
Contenu
1 x wireless starter kit mainboard, 1 x EFR32MG21 2.4 GHz +10 dBm radio board, Cables, EFR32MG getting started card.
Spécifications techniques
Silicon Laboratories
Communication sans fil
Kit de démarrage sans fil Carte mère, Carte radio EFR32MG21 2,4 GHz +10 dBm, Câbles, Carte de mise en route
No SVHC (16-Jul-2019)
EFR32MG21
Bluetooth Low Energy, SoC
Compute Module 3+ Series
Documents techniques (1)
Législation et Questions environnementales
Pays dans lequel la dernière étape de production majeure est intervenuePays d'origine :Norway
Pays dans lequel la dernière étape de production majeure est intervenue
RoHS
RoHS
Certificat de conformité du produit
